ASTM SA790 Duplex 32750 (2507) Stainless Steel Seamless Pipe / Welded Pipe

Name: ASTM SA790 Duplex 32750 2507 Stainless Steel Seamless Pipe Welded Pipe
Brand: DELTA
Price: 7000 USD

ASTM SA790 Duplex 32750 (2507) Stainless Steel Seamless Pipe / Welded Pipe Manufactures

Brand Name : DELTA

Model Number : S32750

Certification : ISO

Place of Origin : China

MOQ : 500 kgs

Price : 7000-8000USD/Ton

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10 Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Products : Stainless Steel Pipe

Grade : Stainless Steel 2507

Standard : ASTM GB EN

Length : 6m or custom cutting any length as request

Diameter : DN10 - DN400

Wall thickness : SCH10 - XXS or unstandard size

Type : seamless pipe

Service : cutting, polishing

application : Heat exchanger

Packing : wooden box or PP bag

Contact Now

ASTM SA790 Duplex 32750 (2507) Stainless Steel Seamless Pipe / Welded Pipe

Products Name	S32750 / 2507 Stainless Steel Pipe
Pipe Type	Seamless Pipe . Welded Pipe
Surface	Pickling , polishing
Out Diameter	6 - 508mm
Wall Thickness	1.0 - 50.0mm
Length	6m or cutting any length as request
Standard	ASTM / GB / EN / DIN / JIS / BS / BIS
Mainly Grade	304 304L 304H 309S 310S 316L 316Ti 317L 321 347 2205 2507 904L 254SMO 800/800H Alloy20 ,Hastelloy Alloy, Monel Alloy,Inconel Alloy
Service	Cutting, Polishing, Hairline Finishing
MOQ	200 Kgs
Packing	standard packing for export
Application	Industrial , food , medical, househould

Alloy 2507, is referred to as a super duplex stainless steel alloy for several reasons. First, the chemistry of the ASTM A790 UNS S32750 Seamless Pipe is designed to withstand highly corrosive environments, in particular those environments which are susceptible to getting decayed by either pitting or by crevice corrosion. Second, due to its mixed microstructure phase, the A790 uns s32750 seamless pipe has properties reminiscent of both austenitic as well as ferritic classes of stainless steel, making this variety a much stronger and better class of steels.

More Detail Specification of SA790 S32750 Seamless / Welded Pipe

Specification	ASTM A790 and ASME SA790
Standard	ASTM, AISI, EN, GB, DIN, JIS, ASME
Outer Diameter	6.00MM Outer Diameter upto 250MM Outer Diameter, Sizes upto 12Inch NB
ASTM A790 S32750 Welded Pipe size	5.0 MM To 1219.2 MM
ASME SA790 UNS S32750 EFW Pipe size	5.0 To 1219.2 MM
Thickness	0.3 To 50 MM
SA790 S32750 Seamless Pipe Sizes	3.35MM Outer Diameter - 101. MM Outer Diameter, 15NB to 150NB Inch
ASTM A790 UNS S32750 Welded Pipe Sizes	6.35MM Outer Diameter To 152MM Outer Diameter Pipe
Swg and Bwg	10, 12, 14, 16, 18, 20 Swg.
ASTM A790 S32750 Pipe wall thickness	0.020" –0.220 Inch (special wall thicknesses available)
ASTM A790 UNS S32750 Pipe Schedule	5, 10, 40, 80, 80S, 160, XXS, XS
Finish	NO.1, Polished, 2B, Annealed and Pickled, Bright and Annealed, MF, NO.4, BA, HL, 8K, Mirror finish etc
Form	U Shape, Round, Square, Hollow, Hydraulic, Coiled, Straight Pipes, Rectangular, Pan Cake Coils etc.
Length	Double Random, Single Random, Standard and Cut length
End	Plain End, Beveled End, Treaded Pipe
Type	Seamless, ERW, EFW, Welded, Fabricated, CDW, DOM and CEW Pipe

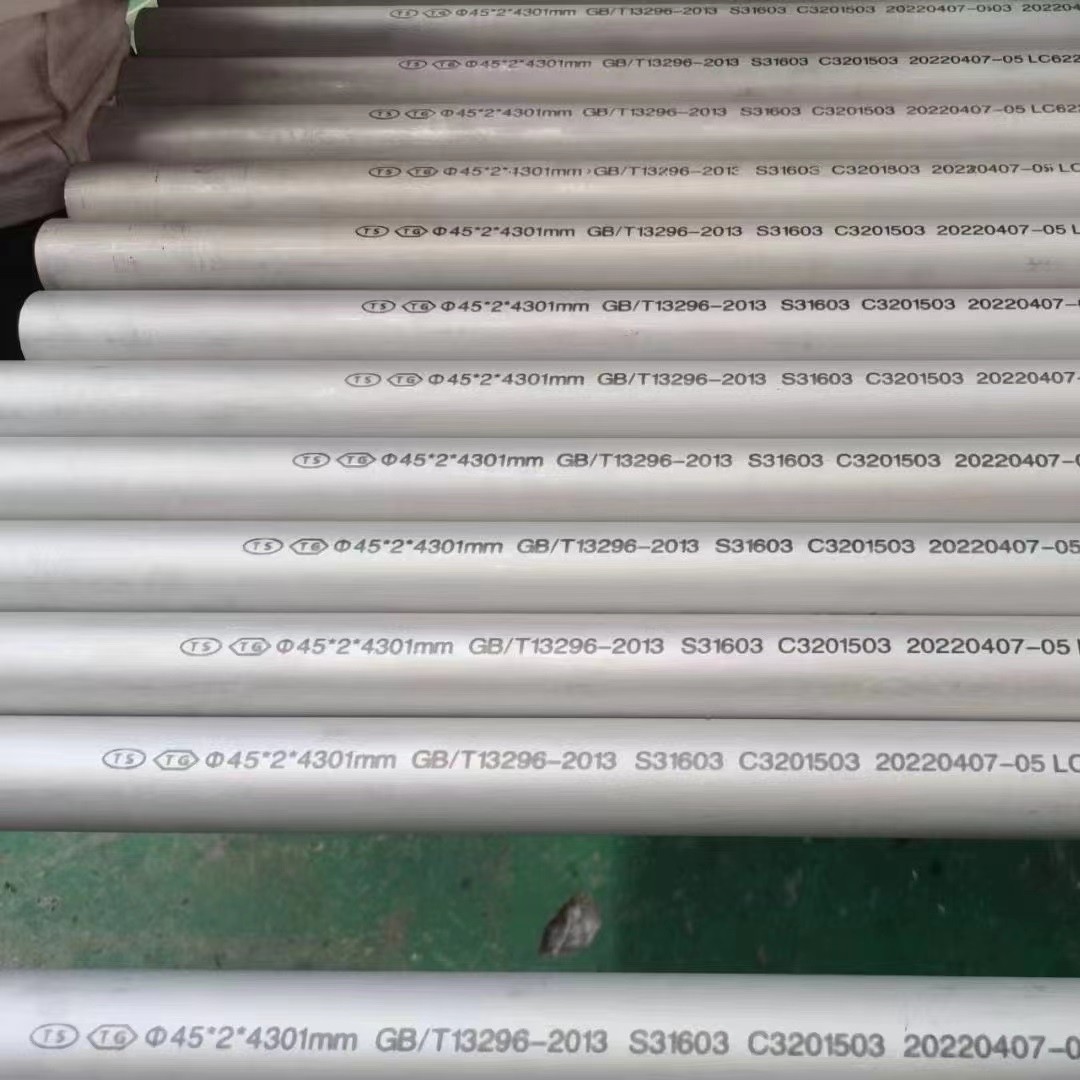

Marking	All A790 UNS S32750 Pipes are marked as follows: Supplier and Manufacturer’s Name, Grade, Standard, OD, Thickness, Length, Heat No and Supplier / Manufacturer’s Name
Supplier provide Value Added Service	Draw and Expansion as per required Size and Length, Polish are Electro and Commercial or Annealed and Pickled Bending, Machining Etc.

SA 790 UNS S32750 Round Pipe Chemical Compostion

C	N	P	Si	Mn	Mo	Ni	Cr	S	Other
0.030	0.24/0.32	0.035	0.80	1.20	3.0/5.0	6.00/8.00	24.0/26.0	0.020	Cu:0.50

ASME SA 790 UNS S32750 Pipe Mechanical properties

Density	Melting point	Yield strength	Tensile trength	Elongation
7.8 g/cm3	1350 °C (2460 °F)	Psi - 80000 , MPa - 550	Psi - 116000 , MPa - 800	15 %

SA790 S32750 welded Pipe Application

Off-Shore Oil Drilling Companies
Power Generation
Structural and mechanical components
Petrochemicals
Gas Processing
Condensers
Sea Water Equipment
Heat exchangers
Pharmaceutical Equipment
Chemical Equipment
Cooling pipes
